•Supports 9.95Gb/s to 10.3Gb/s data rates

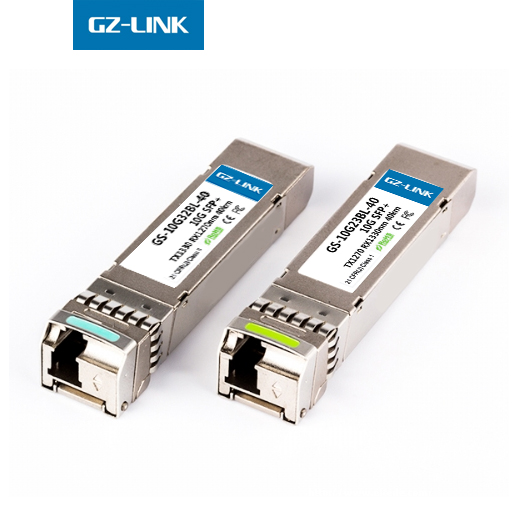

•Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
•Single 3.3V Supply
•Up to 20km on 9/125um SMF
•A:1270nm DFB Laser transmitter,1330nm receiver
•B:1330nm DFB Laser transmitter,1270nm receiver
•Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
•SFP+ MSA SFF-8431 Compliant
•Digital Diagnostic SFF-8472 Compliant
•RoHS compliant and Lead Free
•Operating case temperature: Standard: 0 ~ 70 °C
Package (Form Factor) | BIDI SFP+ |
Data Rate (typical) | 10.3 Gb/s |
Centre Wavelength | Tx1330nm/Rx1270nm |
Distance | 20km |
Diagnostics | Digital Monitor |
Transmitter | DFB Laser |
Receiver | PIN photo detector |
TX Output Power (dBm) | -2~+2 |
RX Sensitivity (dBm) | -14.5 |
Low/High Case Temperature | 0°C~70°C |
Voltage Supply (typical) | 3.3v |
Connector | Simplex LC/UPC |
